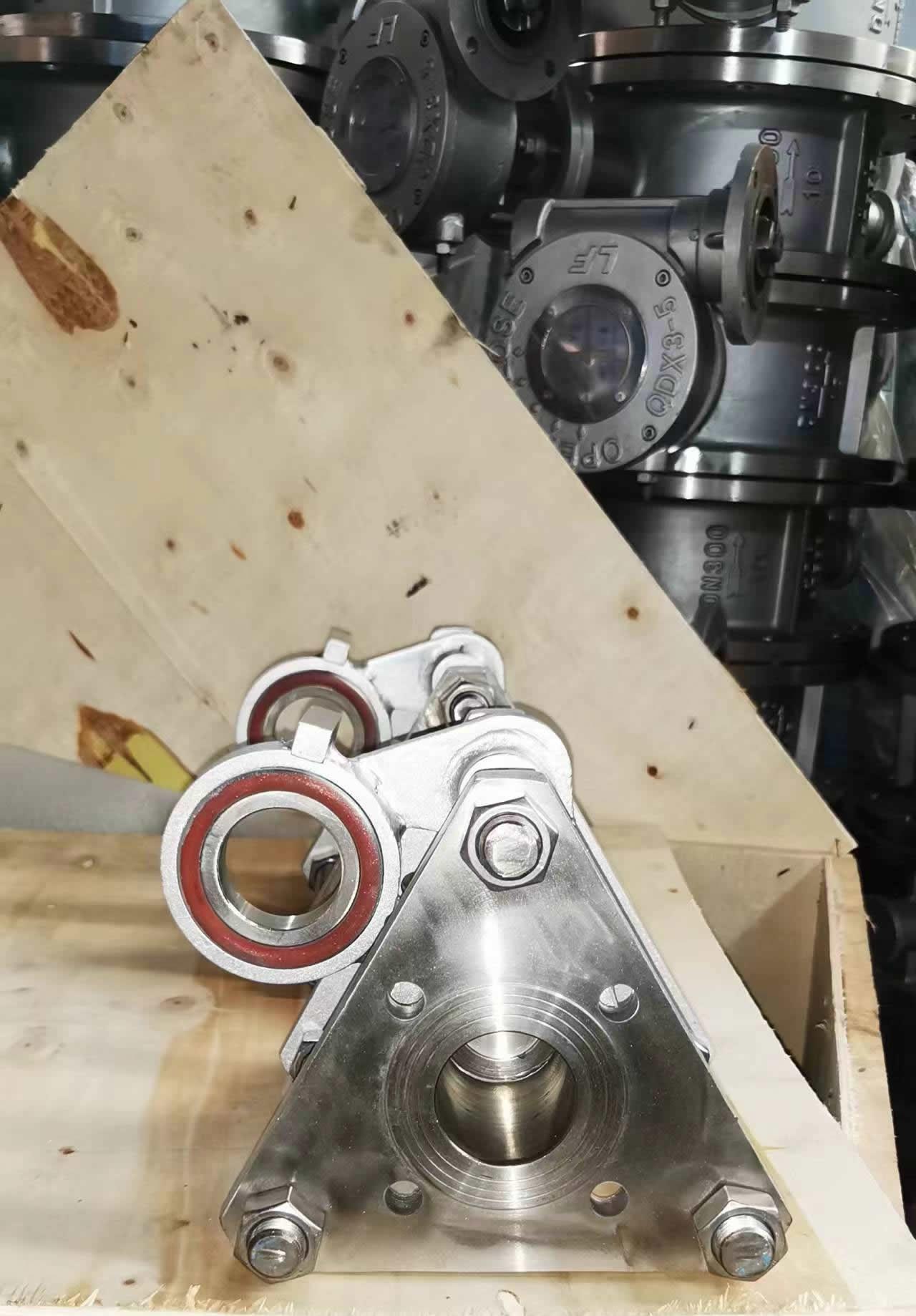

This type of small quick cut blind plate is suitable for blind plate plugging operations in small-diameter pipelines. Only one staff member needs to operate the manual mechanism to release the left and right valve bodies, and rotate the blind plate into place to complete the blind plate plugging operation of the small-diameter pipeline within 3-5 minutes. Electric actuators can also be optionally selected for safer and more efficient operation.

Nominal diameter: DN50-DN300

Nominal pressure: PN1-PN6

Design temperature:- 20℃-+245℃

Applicable media: gases, liquids, and other fluids

Technical parameters:

Nominal diameter: DN50-DN300

Nominal pressure: PN1-PN6

Design temperature:- 20℃-+245℃

Applicable media: gases, liquids, and other fluids

texture of material:

Valve body: carbon steel, stainless steel, special materials (duplex steel, titanium alloy, etc.)

Blind plates: carbon steel, stainless steel, special materials (duplex steel, titanium alloy, etc.)

Sealing materials: rubber, silicone rubber, fluororubber and other drive materials

Method: manual, electric, pneumatic, hydraulic

Applicable industries:

Refining industry: ethylene furnace, coke removal line, steam pipeline, fractionator isolation, flare gas pipeline, etc.

Chemical industry: reactor discharge outlets, chemical cleaning isolation devices, regenerated gas pipelines, transfer pipelines, mixed medium pipelines, etc.

Cement industry: finished material pipeline.

Oil storage tank area: petrochemical storage tanks, natural gas storage tanks, loading and unloading stations, etc
