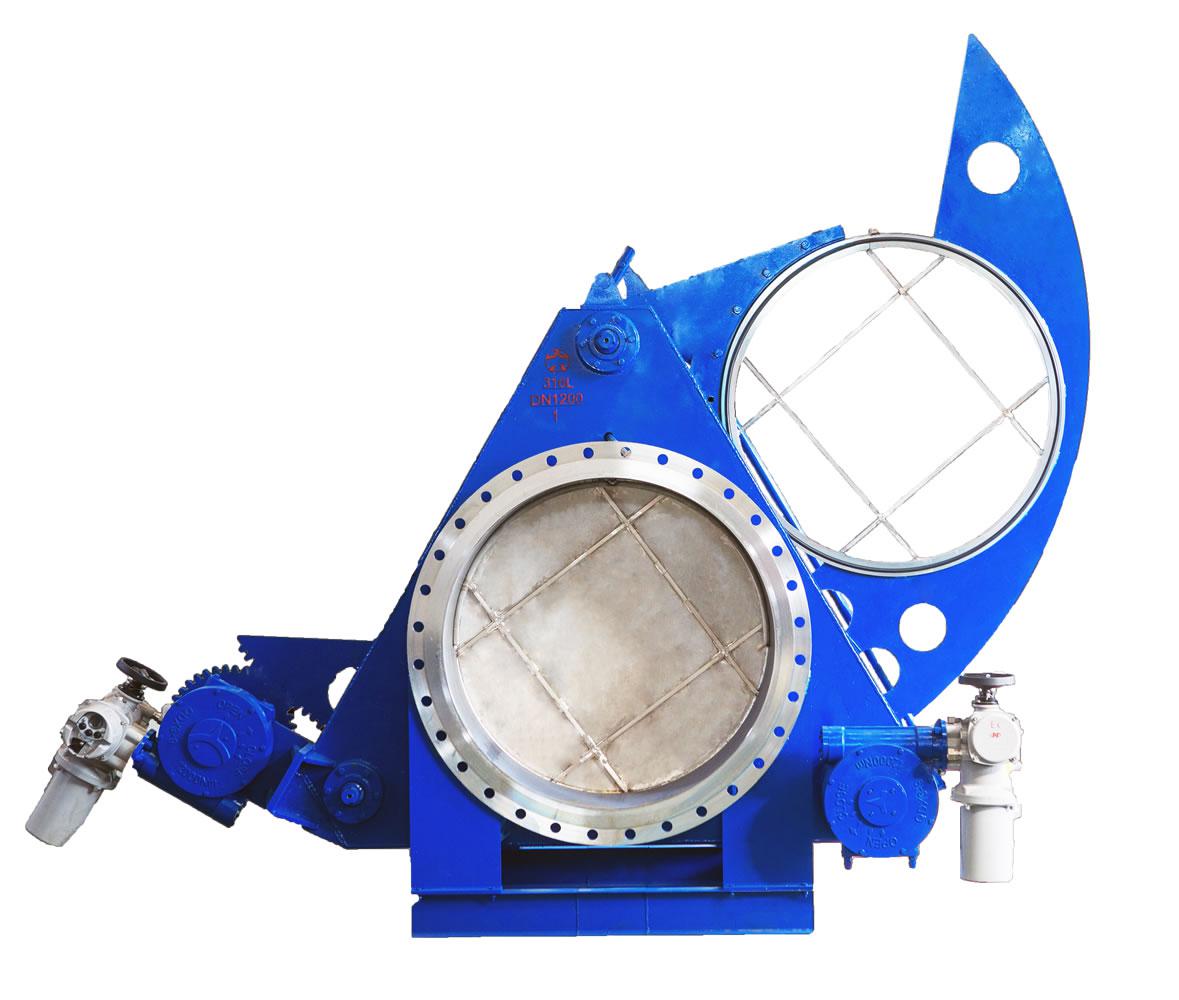

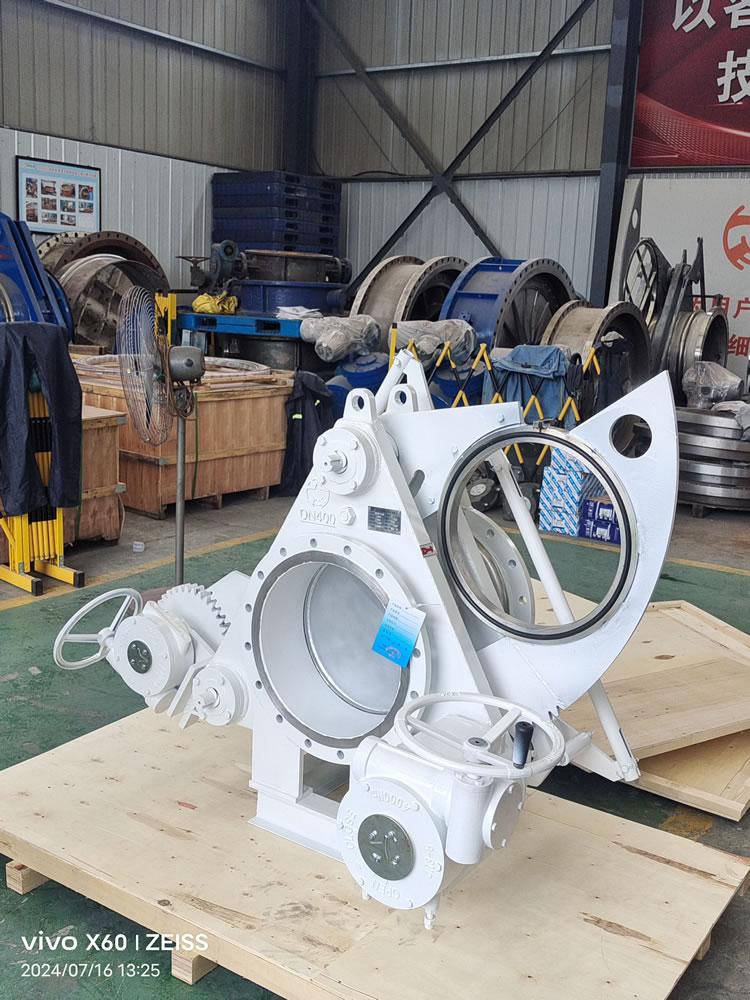

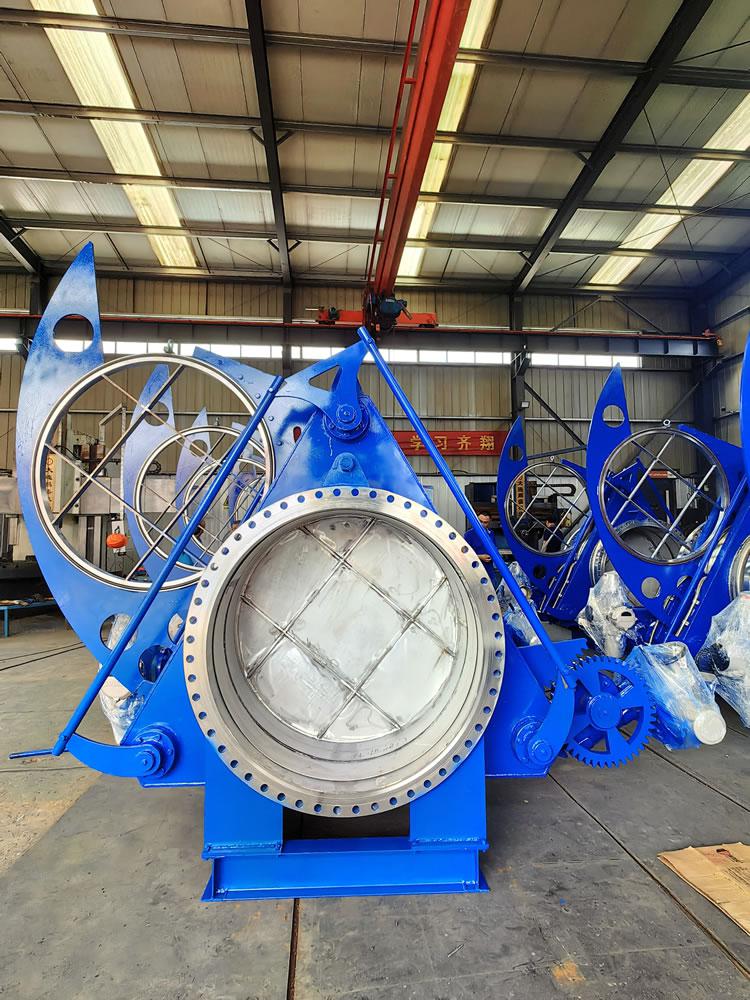

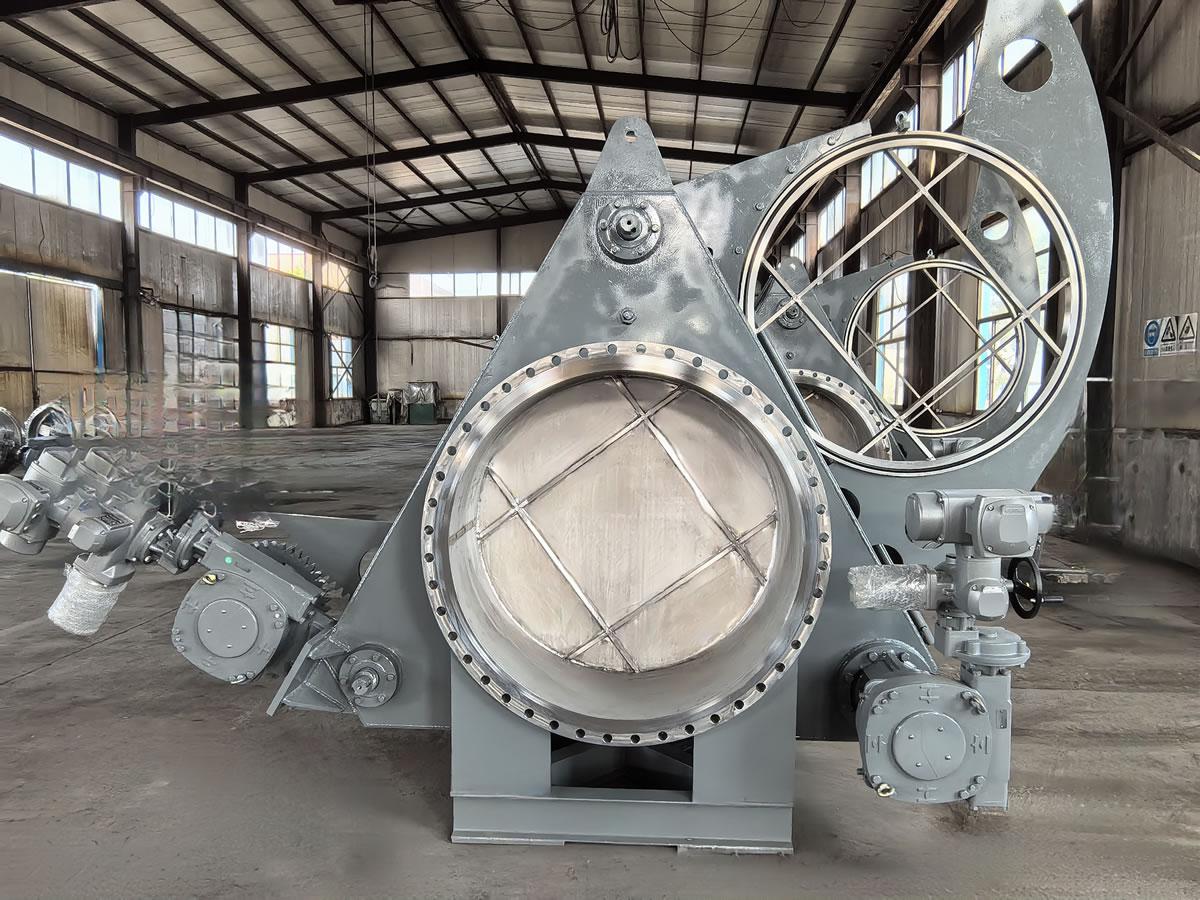

This type of three-point quick switching blind plate is suitable for blind plate plugging operations in large-diameter and low-pressure pipelines. Only one staff member needs to operate the electric actuator to loosen the left and right valve bodies, and rotate the plate into place. It takes 3-5 minutes to complete the blind plate plugging operation for large-diameter pipelines. Electric, pneumatic and other different actuators can be selected according to on-site requirements to replace manual safety and efficiency.

Nominal diameter: DN150-DN1600

Nominal pressure: PN1-PN2.5

Design temperature:- 20℃-+245℃

Applicable media: gases, liquids, and other fluids

Technical parameters:

Nominal diameter: DN150-DN1600

Nominal pressure: PN1-PN2.5

Design temperature:- 20℃-+245℃

Applicable media: gases, liquids, and other fluids

texture of material:

Valve body: carbon steel, stainless steel, special materials (duplex steel, titanium alloy, etc.)

Blind plates: carbon steel, stainless steel, special materials (duplex steel, titanium alloy, etc.)

Sealing materials: rubber, silicone rubber, fluororubber and other drive materials

Method: manual, electric, pneumatic, hydraulic

Applicable industries:

Refining industry: ethylene furnace, coke removal line, steam pipeline, fractionator isolation, flare gas pipeline, etc.

Chemical industry: reactor discharge outlets, chemical cleaning isolation devices, regenerated gas pipelines, transfer pipelines, mixed medium pipelines, etc.

Cement industry: finished material pipeline.

Oil storage tank area: petrochemical storage tanks, natural gas storage tanks, loading and unloading stations, etc
